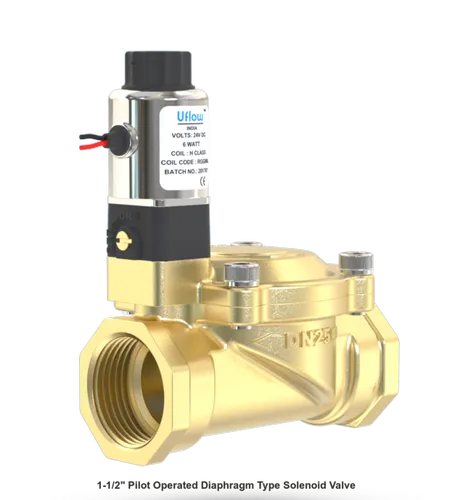

Pilot Operated Diaphragm Type SOV
Pilot Operated Diaphragm Type SOV uses a diaphragm mechanism to control the flow of fluids or gases in response to a solenoid’s electrical signal. The diaphragm acts as the sealing element, which moves to open or close the flow path when the pilot solenoid is activated. This valve design is ideal for applications that require precise flow control in low- to medium-pressure systems, often found in pneumatic and process control systems. The pilot-operated diaphragm system allows for better control with lower energy consumption compared to some other valve types.
- Worldwide shipping on all orders
Pilot Operated Diaphragm Solenoid Valve – Reliable and Energy-Efficient Flow Control
The Pilot Operated Diaphragm Solenoid Valve (SOV) is engineered to provide precise and reliable flow control for low to medium pressure applications. By using a pilot-controlled diaphragm mechanism, this valve requires less power to operate while delivering consistent performance and leak-free operation. Its compact, corrosion-resistant design ensures durability and easy maintenance, making it ideal for industrial, commercial, and process automation systems.
Key Features & Specifications
Low to Medium Pressure Handling: Effective in applications where pressure is moderate or low.
Precise Flow Control: Accurately regulates fluid or gas for sensitive processes.
Pilot-Controlled Operation: Solenoid powers a small pilot valve that controls the main valve, reducing energy usage.
Energy-Efficient: Minimal power is required to operate the valve while maintaining strong performance.
Leak-Free Operation: Diaphragm forms a tight seal, preventing leaks.
Compact Design: Suitable for installations with limited space.
Corrosion-Resistant Materials: Long-lasting construction for demanding environments.
Quick Response Time: Rapid activation and deactivation for fast flow adjustments.
Minimal Maintenance: Fewer moving parts reduce wear and simplify servicing.
Benefits to the Customer
Reliable & Accurate Control: Ensures stable, precise flow for sensitive industrial processes.
Energy Savings: Pilot-operated design reduces overall power consumption.
Versatile Applications: Perfect for air handling, gas flow regulation, liquid dosing, and process automation.
Durable & Cost-Effective: Provides long-lasting performance at a budget-friendly price.
Practical Use Cases
Ideal for pipelines, processing systems, and automation where low to medium pressure control is required. For example, it works efficiently in HVAC airflow systems, laboratory setups, industrial dosing processes, and gas regulation applications. Additionally, its compact design allows installation in tight spaces while maintaining reliable performance.
Why Choose This Pilot Operated Diaphragm Solenoid Valve?
Investing in this valve guarantees precise, energy-efficient, and durable flow control. Its pilot-controlled diaphragm design ensures minimal maintenance, quick response, and reliable operation, making it an excellent choice for cost-conscious industries needing dependable low to medium pressure control.
Technical Details:
Material: Corrosion-resistant metal and durable diaphragm
Pressure Range: Low to medium pressure systems
Voltage Options: Standard industrial solenoid voltages
Compact Design: Space-saving installation suitable for constrained environments
Upgrade your system with the Pilot Operated Diaphragm SOV, providing precise, energy-efficient, and reliable flow control for a wide range of low to medium pressure applications.
