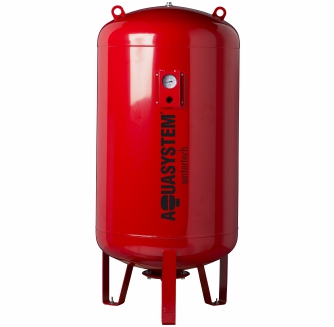

AQUASYSTEM VERTICAL PRESSURE TANKS WITH REPLACEABLE MEMBRANE 16 BAR – SERIES VBV 750-4000
people are viewing this right now
Guaranteed Checkout
- Worldwide shipping on all orders
Vertical Pressure Tank 16 Bar EPDM is engineered for high-capacity water supply, fire protection, and industrial pressure systems where stable pressure and long service life are critical. This vertical pressure tank is manufactured using heavy-gauge steel and finished with a durable RAL 3000 external coating, providing excellent resistance to corrosion and harsh operating environments. The Vertical Pressure Tank 16 Bar EPDM design ensures reliable pressure control, reduces pump cycling, and improves overall system efficiency.
Working temperature
- -10°C
- +100°C
External finish color
- RAL 3000
Rubber membrane
- EPDM

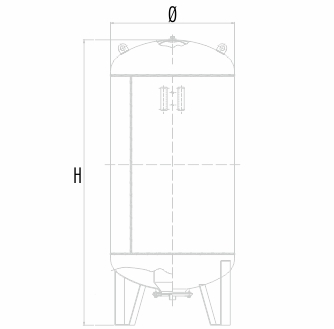

| MODEL | H HEIGHT | ⌀ DIAMETER | MAXIMUM WORKING PRESSURE | STANDARD PRECHARGE PRESSURE | CONNECTION |
|---|---|---|---|---|---|
| (mm) | (mm) | (bar) | (bar) | (inches) | |
| VBV750 | 1900 | 750 | 16 | 4 | 2 ” |
| VBV1000 | 2180 | 800 | 16 | 4 | 2 ” |
| VBV1500 | 2360 | 960 | 16 | 4 | 2 ” |
| VBV2000 | 2520 | 1100 | 16 | 4 | 2 ” |
| VBV3000 | 2760 | 1200 | 16 | 4 | DN 65 |
| VBV4000 | 3100 | 1450 | 16 | 4 | DN 80 |
