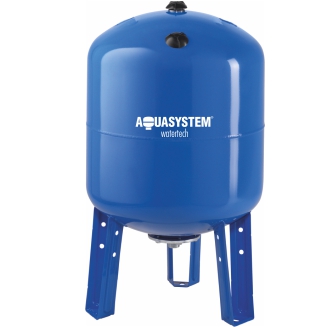

AQUASYSTEM VERTICAL PRESSURE TANKS WITH REPLACEABLE MEMBRANE 16 BAR – SERIES VBV 50-500

people are viewing this right now

Guaranteed Checkout

Worldwide shipping on all orders

Category: Pressure Vessels

Enquire Now

Description
Reviews (0)

Description

Vertical Pressure Tank 16 Bar is engineered for water supply, booster systems, and industrial pressure applications where stable performance and durability are required. This vertical pressure tank range features an EPDM rubber membrane, corrosion-resistant steel body, and reliable pressure control. The vertical pressure tank 16 bar design helps reduce pump cycling while maintaining constant system pressure in commercial and industrial installations.

Working temperature

-10°C
+100°C

External finish color

RAL 5015

Rubber membrane

EPDM

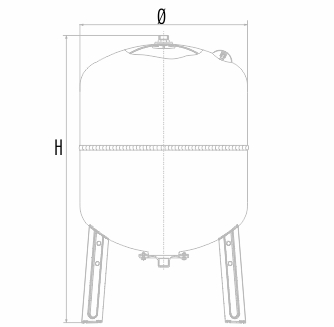

MODEL	H HEIGHT	⌀ DIAMETER	MAXIMUM WORKING PRESSURE	STANDARD PRECHARGE PRESSURE	CONNECTION
	(mm)	(mm)	(bar)	(bar)	(inches)
VBV50	720	365	16	2	1”
VBV60	808	365	16	2	1”
VBV80	810	415	16	2	1”
VBV100	849	495	16	2	1”
VBV150	975	550	16	2	1”
VBV200	1085	600	16	2	1¼”
VBV300	1240	650	16	2	1¼”
VBV500	1490	750	16	2	1¼”
