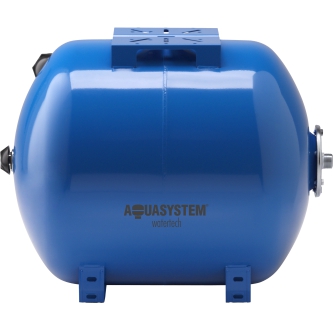

AQUASYSTEM HORIZONTAL PRESSURE TANKS WITH REPLACEABLE MEMBRANE 10 BAR – SERIES VAO 18-300

The Horizontal Water Pressure Tank delivers reliable performance for potable water systems and pressure boosting applications. It features a durable EPDM membrane, a 10 bar working pressure rating, and a wide operating temperature range.

Designed for long service life, this Horizontal Water Pressure Tank ensures stable pressure control and efficient system operation in residential and commercial installations.

Working temperature

• -10°C
• +100°C

External finish color

• RAL 5015

Rubber membrane

• EPDM


  MODEL	H HEIGHT	L LENGTH	MAXIMUM WORKING PRESSURE	STANDARD PRECHARGE PRESSURE	CONNECTION
  	(mm)	(mm)	(bar)	(bar)	(inches)
  VAO18	305	430	10	1.5	1”
  VAO24	305	483	10	1.5	1”
  VAO35	376	440	10	1.5	1”
  VAO50	380	585	10	1.5	1”
  VAO60	385	665	10	1.5	1”
  VAO80	430	725	10	1.5	1”
  VAO100	520	685	10	1.5	1”
  VAO150	585	820	10	1.5	1”
  VAO200	628	920	10	2	1 ¼ ”
  VAO300	680	1082	10	2	1 ¼ ”
